Chrome Compression Angle Stop Valve Guide 2026

Close to 30% of residential plumbing callouts originate from a shutoff valve failure. This highlights the importance of the right water control valve. It is every bit as important as the fixture it supplies.

This guide offers a practical look at the angle valve 1/2. It explains what it is, its role in modern plumbing, and the benefits of proper installation. Homeowners as well as pros can use the advice here for everything from lavatory shutoffs to dishwasher and washer hookups.

We reference trade sources and product examples, like chrome-plated brass models with integrated seals. This helps explain compatibility with common stub-outs and supply lines. Whether you’re doing a DIY fix or purchasing from distributors like Installation Parts Supply, knowing how the compression angle stop works is crucial. It ensures you choose the best water control valve for your project.

Understanding Angle Stop Valves And Compression Fittings

Angle stops are compact shutoff devices that change flow direction 90 degrees between a supply stub-out and the fixture supply line. A common 1/2 angle stop valve is installed under sinks and behind toilets. It gives a local water control valve without shutting off the whole house. Both homeowners and pros rely on these valves for routine maintenance, fixture changes, and quick isolation during diy plumbing repair.

What an angle stop does:

Offers a local shutoff point at lavatories, sinks, toilets, dishwashers, and washing machines.
Fits tight spaces where a straight valve would be impractical.
Available in common sizes such as angle valve 1/2 or smaller 1/4 options.

How compression fittings form a seal

Compression-style valves rely on a nut and ferrule compressing onto copper, brass, or PEX (with an insert) to form a mechanical seal. The compression fitting angle valve installs without soldering, which speeds installs and simplifies future valve replacement. Installers tighten the nut to drive the ferrule against the stub-out so it grips and seals the tubing.

Reasons Pros And DIYers Prefer Compression

No open flame or hot work is required, making compression ideal for retrofit jobs and tight access areas.
Valves like the 1/2″ angle stop can be swapped without cutting back the supply if the ferrule and nut are in good condition.
Compression works well with copper and PEX when paired with proper inserts or ferrules.

Compression Compared To Sweat And Threaded Connections

Compression avoids the need for soldering, making many field repairs quicker. Sweat joints create a permanent connection that some plumbers favor for long-term work. Threaded arrangements, like threading an angle stop into an FIP drop-ear 90, offer good serviceability but need proper alignment and sealing. Discussion among pros often centers on whether to use buried threaded nipples or sweat adapters, as well as how exposed copper looks beneath sinks.

Type Of Connection	Pros	Cons
Compression (1/2 angle stop valve)	Fast installation, no soldering, easy valve replacement, works with copper and PEX	Ferrule may need replacement after repeated disassembly; not always seen as permanent as sweat
Sweat	Very durable, permanent joint, often preferred for long-term projects	Requires soldering, hot work, longer downtime during installation
Threaded into FIP drop-ear 90	Easily serviceable, secure mechanical joint, good where maintenance is frequent	Needs proper sealing, carries risks with buried nipples, can be bulky in tight spots

About The Chrome Compression Angle Stop Valve

The chrome compression angle stop valve balances style and functionality for exposed plumbing fixtures. With chrome-plated brass construction, it’s engineered to suit the needs of both buyers and installers. As a result, it is a common choice for visible supply shutoffs and fast repairs.

Chrome-Plated Brass Construction And Finishes Overview

High-quality angle stops are built with machined brass bodies and a chrome-plated finish. This finish complements typical bathroom hardware and offers a polished appearance that resists tarnishing. Brass is selected as the base metal for its strength and suitability for potable water use.

Manufacturers like Schell and Moen provide chrome-plated brass models. Variants with integrated seals are also available from these brands. Product listings typically detail finish, dimensions, and whether the valve includes a serviceable packing or a factory-fit compression nut.

Performance Highlights: Corrosion Resistance And Durability

Brass is valued for its corrosion resistance and for resisting dezincification in common domestic water environments. A chrome finish provides an additional layer of protection. It helps the valve match faucets and other bathroom hardware visually.

With integrated seals, extra sealant is not usually required during installation. Good internal design and serviceable packing contribute to long operating life. They provide reliable shutoff over many open-close operations.

Typical Install Locations For Chrome Angle Stops

Chrome compression angle stop valves work well under lavatories, behind toilets, and below kitchen sinks. Their compact 90-degree turn is perfect for spaces where room is limited. They are equally effective for right-angle connection points.

Common choices include the 1/2 compression angle stop or a 1/2 x 1/4 variant, based on fixture inlet size. Listings often include chrome finish photos, notes on integrated seals, and pricing. This helps set buyer expectations for bathroom hardware and plumbing fixtures.

Angle Valve Sizes And Connection Types

Choosing an angle valve correctly starts with understanding size labels. Manufacturers list inlet and outlet sizes as nominal pairs like 1/2 x 1/4 angle stop or 1/2 x 1/2 angle stop valve. These labels indicate how the valve will fit different fixtures and supply lines.

The term 1/2 angle stop typically denotes a 1/2″ inlet, designed to connect to wall stub-outs. This size can pair with a smaller outlet, such as a 1/4 angle stop, for precise fixture connections. A 1/4 angle stop is often used for smaller flex lines or appliance inlets.

In some cases, a 1/2 x 1/4 angle stop is chosen when the supply line is full-size copper or PEX, but the fixture requires a smaller connector. For installations where both supply and outlet have the same diameter, a 1/2 x 1/2 angle stop valve is preferred. Always double-check inlet x outlet sizing before you buy.

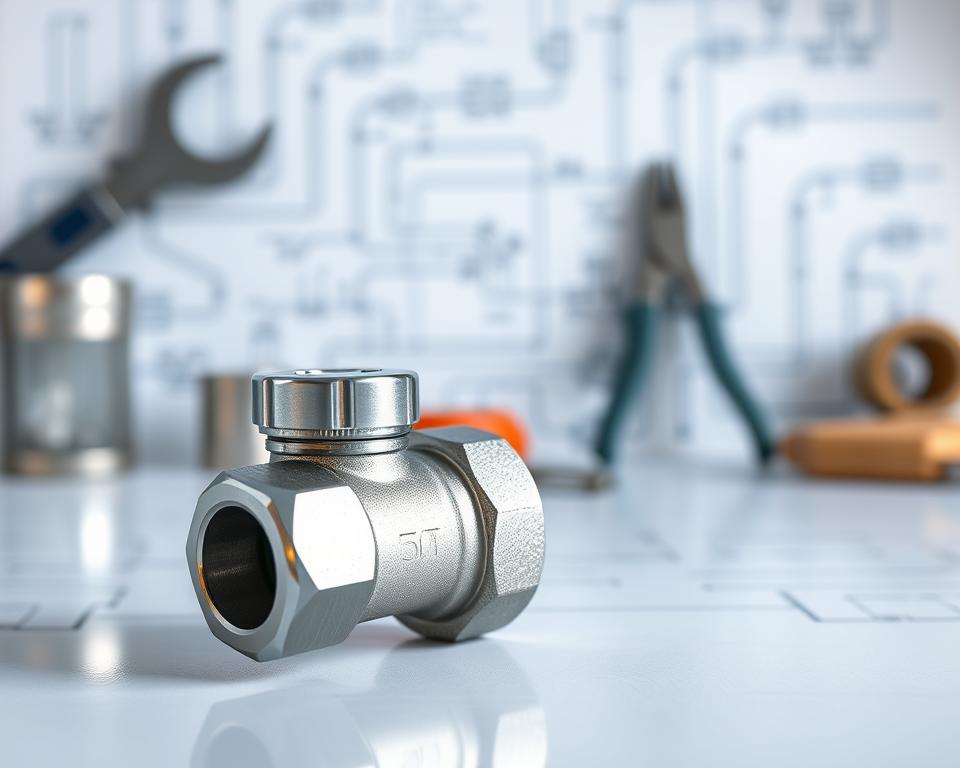

Compression-specific valves are popular because of how easy they are to connect in the field. A 1/2 compression valve fits standard 1/2″ copper or PEX lines with the correct ferrule or insert. Many suppliers sell a 1/2 compression angle stop that includes a compression nut and ferrule for immediate installation.

Note that some valves use metric notation, for example DN 15 corresponding to a 1/2″ nominal size. Make sure the valve matches the actual supply piping and flexible hose fittings at the job site. Check whether the product has an integrated seal or requires a separate ferrule so you can avoid installation problems.

Choosing The Right Valve: Compatibility And Measurements

Choosing the right valve begins with precise measurements and ensuring the inlet type matches the stub-out. Check the stub-out for its outside diameter on copper lines. Look for threads and determine if the outlet ends in a drop-ear 90 or a plain copper stub. Doing this early helps avoid costly returns and saves time on the installation.

How to measure stub-outs and determine angle valve 1/2 compatibility

Measure copper stub-outs by their outside diameter. Nominal 1/2″ copper stub-outs measure around 1/2″ OD. If you see threads, determine whether they are FIP or MIP. For compression connections, make sure the ferrule seating area and stub length allow proper engagement with the ferrule and nut.

Trade practices often favor drop-eared 90s or soldered adapters for extra support or consistent ferrule seating. Align these details with the valve inlet designation so the angle valve 1/2 fits correctly without improvised adapters.

How To Identify 1/2 x 1/2 Compression Shut Off Valves

Examine packaging and spec sheets carefully. A 1/2 x 1/2 compression shut off valve will identify both inlet and outlet as 1/2″ rated connections. By contrast, a 1/2 x 1/4 angle stop includes a smaller outlet tailored for fixture tubing or a flex connector.

When replacing valves for a retrofit, compare the outlet size to the fixture supply hose. Ensure the body type matches the installation. Some installers stock chrome compression angle stop valve models for visible locations and plain brass valves for hidden shutoffs.

How To Check For Integrated Seals And Factory-Fit Nuts

Inspect product details for ferrules, nuts, or integrated seals. Certain models, such as those from Schell, include factory-fit compression nuts or self-sealing components. These features simplify installation and reduce the need for Teflon tape.

Many compression-specific valves clearly indicate if ferrules are preinstalled or if a factory-fit nut is included. For fast, leak-resistant installs—particularly in tight bathroom or kitchen retrofits—opt for valves that include documented integrated seals.

Installation Best Practices For Leak-Resistant Angle Stop Valves

Begin the process by thoroughly preparing the supply line. Use a high-quality tube cutter to cut copper or PEX square. Ensure the end is deburred and squared for even ferrule seating. Place the compression nut and ferrule on the pipe correctly before attaching the valve. Clean the threads on drop-eared 90s or FIP adapters and confirm their depth to help prevent cross-threading.

When seating a compression fitting angle valve, lightly push the ferrule into the valve inlet while tightening the nut. Keep the valve body from turning and tighten the nut in small steps. Doing so helps the ferrule compress evenly. Adhere to the manufacturer torque recommendation, commonly hand-tight then a quarter to half turn with an adjustable wrench.

When installing a chrome valve, you should protect its finish. Chrome surfaces can scratch easily. Use strap-jaw pliers or a soft cloth to prevent damage during tightening. Tighten gradually and then test the joint. Excessive force can deform the ferrule or damage threads, leading to leaks.

Compression joints usually don’t require Teflon tape. Use thread sealant or Teflon tape only on threaded adapters, in line with manufacturer guidance. For valves with integrated or self-sealing designs, tape or sealant is often unnecessary at the valve-to-connector interface.

To confirm a leak-resistant angle stop valve installation, test it under typical system pressure. Inspect around the compression nut and ferrule for any signs of leakage. Should a minor leak show up, tighten slightly and recheck. If the leak remains, take the joint apart, inspect components, replace faulty ferrules, and reinstall.

A lot of pros prefer sweat or threaded methods for permanent installations. Trade practices sometimes use drop-eared 90s for easy valve swapping without cutting the stub-out. Select the method that offers the best combination of access and long-term serviceability.

Tools and materials for DIY plumbing repair with chrome valves

Having the correct tools and parts is essential for a successful DIY plumbing repair. Clear your work area, confirm the valve model, and collect all necessary items prior to shutting off the water.

Essential Tools

You’ll need an adjustable wrench and a backup wrench to hold fittings while turning the valve. A high-quality tube cutter is essential for clean cuts on copper tubing, reducing leak risks. Use a deburring tool or reamer to smooth the freshly cut edges. A protective cloth or strap-jaw pliers will safeguard the chrome finish during tightening. Flaring tools, though less common for compression joints, are useful for flare fittings.

Suggested Consumable Parts

Always install new ferrules and fresh compression nuts when replacing an angle stop. Have washers, O-rings, and integrated seals on hand for valves that require them. Choose manufacturer-specific ferrules for the best fit and seal performance.

Safety Procedures And Shutoff Steps

Before loosening any connection, confirm you have the correct branch or main water shutoff. Open the fixture and valve to drain remaining water from the line. If working near an electric water heater or disposal, shut off power to the nearby appliance. Use eye protection and confirm there is no remaining pressure before you remove fittings.

Where To Source Parts

You can find bulk compression nuts, fresh ferrules, and chrome valves at wholesalers like Installation Parts Supply. These distributors cater to contractors and homeowners managing several installs. Ordering the correct sizes and brands upfront minimizes callbacks and keeps projects on track.

Common installation issues and troubleshooting

Minor leaks and stubborn fittings often show up during valve installation. This section walks through practical checks for diagnosing leaks. We also cover how to address wall-mounted stub-out dilemmas and avoid issues caused by a buried nipple within a finished wall.

Diagnosing leaks

Start by isolating where the leak originates: inlet, outlet, or packing. A drip at the compression nut usually indicates a ferrule seating problem, under- or over-tightening, or a damaged ferrule.

If the nut shows a slight weep, loosen it, remove the valve, inspect the ferrule and pipe end, and then reseat or replace the ferrule and nut. Cut back any burrs or deformity on the tube before reassembly.

Valves using integrated seals should be inspected visually. If the seal is torn or displaced, replace the valve. When diagnosing leaks, note the exact leak location to avoid repeated disassembly.

Wall-mounted stub-out concerns

There is ongoing debate among plumbers about threaded elbows versus sweat fittings at rough-in. A threaded elbow lets a valve thread on and be changed without cutting the stub-out. This approach supports a leak-resistant angle stop valve strategy where service access is important.

Sweat fittings result in a durable, permanent joint. They reduce the chance of seepage at the joint, but soldered connections make future valve swaps harder. Choose sweat fittings when your priorities are permanence and minimal ongoing maintenance.

When buried nipples cause problems

Buried nipples can seize or corrode within the wall, resulting in stuck valves and difficult repairs. Trade literature from pros like Peter Hemp emphasizes planning rough-in details to avoid this pitfall.

Best practice is to use drop-eared 90s, leave a threaded elbow exposed, or use a sweat adapter at rough-in so the threaded nipple doesn’t become buried. Such planning reduces the chance you’ll need to cut into finished walls when replacing a valve.

Practical Fixes And Preventive Steps

Replace ferrules and nuts whenever you see visible deformity; brass ferrules frequently deform when over-tightened.
Recut and deburr tubing whenever the pipe end is damaged; a clean end ensures proper ferrule engagement.
At rough-in, prefer fittings that allow serviceable valve swaps to maintain a leak-resistant angle stop valve strategy.

Issue	Probable Cause	Suggested Fix
Weep at compression nut	Ferrule not seated correctly or ferrule damage	Loosen nut, inspect and replace ferrule and nut, recut tube, retighten to spec
Leak at valve packing	Wear on packed stem or misaligned bonnet	Turn off water, snug the packing nut slightly, replace valve if packing is compromised
Stuck valve on buried nipple	Corrosion or seized threads inside wall	Cut back to accessible fitting, use drop-eared 90 or sweat adapter at rough-in
Frequent leaks after solder	Weak solder joint or excessive flux residue	Desolder and clean, then sweat fittings properly or switch to a threaded elbow where serviceability is important

Quality, Certifications, And Product Examples

When selecting a valve, certifications and specific specs are key. NSF/ANSI 61 ensures potable water safety, while ANSI/NSF 372 guarantees lead-free compliance. ASME and CSA standards are critical for projects subject to regional codes. Product listings usually detail flow ratings and DN sizing, with DN 15 corresponding to a nominal 1/2 inch connection.

It’s essential to compare product features to meet project demands. Integrated-seal models remove the need for added tape or sealant. Built-in check valves and dual flow limiters cater to specific code or fixture requirements. The packing gland design and the supplied ferrules or nuts affect installation time and long-term leak resistance.

Schell’s DN 15 angle stop valve with integrated seal exemplifies how manufacturers present finish, dimensions, and certifications. Consumer ratings and Best Sellers rankings are valuable for assessing product reliability in plumbing fixtures. Established brands frequently provide combination valves with check valves or flow controls for specific applications.

Wholesale distributors simplify purchasing for contractors. Companies like Installation Parts Supply source chrome compression angle stop valves from reputable manufacturers. They also verify certifications and warranty coverage. It is important to compare wholesale versus retail pricing, check stock availability, and ensure certifications match project requirements before ordering in bulk.

Use a short comparison checklist when evaluating valve options:

Certifications: NSF/ANSI 61, ANSI/NSI 372, ASME/CSA where applicable.
Key Features: integrated seals, check valves, flow limiters, packing gland design.
Fit: DN sizing, inlet/outlet types, included ferrules and nuts.
Sourcing: wholesale availability, inventory levels, warranty coverage, and distributor reputation.

Keep records of certification numbers and batch details when purchasing. This documentation aids in code inspections and long-term plumbing fixture maintenance. Retail listings and distributor catalogs typically include detailed spec sheets for each chrome compression angle stop valve, making it easier to match products to job requirements.

Maintenance, Longevity, And Replacement Signs

Ongoing maintenance is crucial for keeping valves in top shape and extending their service life. A simple inspection every six months can catch minor issues before they escalate. It’s wise to note any stiffness, minor drips, or corrosion to track trends.

Signs It’s Time To Replace

Visible leaks around the compression nut or persistent dripping from the valve stem are clear signs that replacement is needed. Corrosion or pitting of the chrome finish weakens the metal, leading to faster failure. If a 1/2 angle stop or 1/4 angle stop turns stiff or seizes, it clearly needs replacement.

Tips For Routine Maintenance

Opening and closing valves a few turns on a regular basis helps prevent them from seizing. Cleaning aerators and supply lines regularly reduces sediment and mineral buildup. If you’re in a hard-water region, think about installing a point-of-use softener or sediment filter to slow the buildup that reduces valve life.

Caring For Compression Ferrules And Joints

Compression ferrules deform during tightening and should be replaced any time a joint is disturbed. Reusing old ferrules often leads to leaks at the compression connection. For a dependable seal, always use new compression ferrules and nuts whenever you repair or replace the joint.

When to upgrade valve types

If you face persistent leaks, repeated service calls, or overly complex installs, consider upgrading. Look into integrated-seal models, combination valves with built-in check valves, or switching from buried threaded nipples to sweat adapters for easier future service. These upgrades often improve longevity and cut downtime for homeowners and plumbers alike.

Lifecycle expectations

Quality chrome-plated brass valves can last many years under normal conditions. The actual lifespan depends on water quality, usage frequency, and installation quality. Identifying replacement signs early and performing regular maintenance can maximize the performance of a 1/2 angle stop or 1/4 angle stop, reducing unexpected failures.

Cost Considerations And Buying Guide For Homeowners And Pros

Choosing the right valve requires balancing budget, project scope, and long-term value. Homeowners and contractors need to weigh several factors. Among these are base metal choice, chrome plating quality, and whether integrated seals or check valves are included. A more expensive 1/2 x 1/2 angle stop valve, made from solid brass with a thick chrome finish, will last longer than cheaper alloys in visible bathroom installations.

Retail purchases are suitable for small repairs where only one unit is needed. Professionals, on the other hand, often prefer distributors for their volume pricing and inventory depth. Installation Parts Supply offers a wide range of certified models along with contractor-friendly warranties. That approach can reduce total job cost if you’re purchasing multiple 1/2 compression angle stop valves.

When budgeting, look beyond just the valve’s purchase price. Include the cost of ferrules, compression nuts, possible adapter fittings, and basic tools for swap-outs. On visible bathroom hardware work, match finishes and trim to faucet sets to maintain perceived value. For hidden valves, emphasize serviceability and reliability rather than cosmetic appeal.

When comparing retail versus wholesale, check warranty terms, return policies, and certification documentation. Wholesale purchasing can cut per-unit cost, yet some retail options provide lifetime warranties that balance the greater initial cost. Consider the labor time saved through integrated features when estimating total project costs.

Use this quick checklist when choosing valves and parts:

Material choice and plating quality to ensure durability and finish compatibility.
Existence of integrated seals or check valves to reduce the number of extra parts.
Compatibility with existing stub-outs or adapters so you can avoid rework.
Supplier reputation and warranty strength, with special attention to distributors like Installation Parts Supply.

In short, balance up-front cost against lifespan and serviceability. Investing a bit more in a well-made 1/2 x 1/2 angle stop valve or a robust 1/2 compression angle stop can lower maintenance calls and improve results on home improvement jobs.

Conclusion

Choosing the right chrome compression angle stop valve involves several key steps. First, make sure the valve sizes match your needs. Understanding how compression joints function is also essential. Lastly, follow established installation practices to help guarantee a long-lasting, leak-resistant valve.

Whether you work as a pro or are doing DIY plumbing, some steps are always critical. Make a habit of replacing ferrules during every service. For easier installations, consider valves with integrated seals. Use the proper torque and sealing method to ensure a reliable fit.

Proper tools and close attention to detail are vital for a successful chrome valve installation. Such an approach reduces the risk of leaks once the installation is complete. When purchasing, turn to trusted distributors like Installation Parts Supply. They offer certified chrome-plated brass valves and integrated-seal models, including Schell DN15-style valves that meet potable water standards.

Armed with proper parts, correct measurements, and solid craftsmanship, homeowners and professionals alike can deliver durable, good-looking, long-lasting installations. This helps ensure many years of reliable service from your chrome compression angle stop valve.
